Sign-in users with a Microsoft Account to Android apps using Microsoft Quick Authentication (2024)

| Getting Started | Reference | Library Reference ||–|–|–|

On Android, Microsoft Quick Authentication offers a library that makes it easier to add Sign in with Microsoft support to native mobile apps. Quick Authentication uses the Microsoft Authentication Library (MSAL) for Android to handle authentication and authorization for users with personal Microsoft accounts.

Microsoft Quick Authentication is in public preview. This preview is provided without a service-level agreement and isn’t recommended for production workloads. Some features might be unsupported or have constrained capabilities. For more information, see Supplemental terms of use for Microsoft Azure previews.

How it works

Microsoft Quick Authentication allows you to easily add a fully functioning sign-in button to your Android application that will take the user through the sign-in workflow with a Microsoft Account (MSA). Additionally, Quick Authentication allows you to sign-in your users silently whenever possible, to let them sign out of your application, and to perform more advanced tasks such as requesting an access token to retrieve additional user/account information accessible via the Microsoft Graph APIs

To enable Quick Authentication in your application, you will need to follow these high level steps. Each step is further detailed in the rest of this document.

• First register your application for Android on Azure (you can reuse the same Azure registration as for your web site).
• Declare a dependency on the Quick Authentication SDK.
• Add an intent filter for Quick Authentication to your app manifest.
• Create a Quick Authentication sign-in client object (MSQASignInClient) with the proper configuration.
• Add a Quick Authentication sign-in button somewhere in your application’s layout xml or instantiate it programmatically.
• Set a callback on the sign-in button to be notified when the user has completed the sign-in workflow.
• Implement the callback to integrate the user account with your identity system.

Quick Authentication will show a fully functioning sign-in button, looking as follows in its default form, and customizable like with Quick Authentication for the web:

Note that at this time, the personalization of the user experience available with Quick Authentication for the web is not available to Android native apps. However, your users will still be able to sign-in using the button shown above, and benefit from SSO in some circ*mstances.

Registering your application

If you have not yet registered an application or wish to use a new registration, complete the steps in Register an application with the Microsoft identity platform to register your application.

Now that you have created an application registration, you can extend it to Android as follows. On the Azure page describing your app registration:

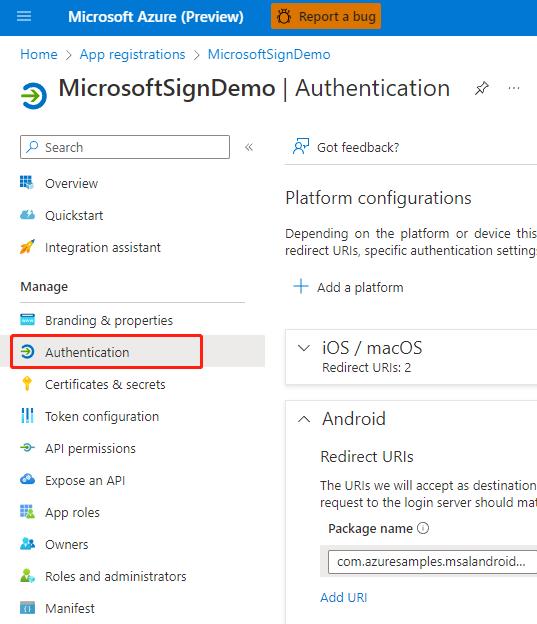

1. Open the Authentication tab on the left of that page

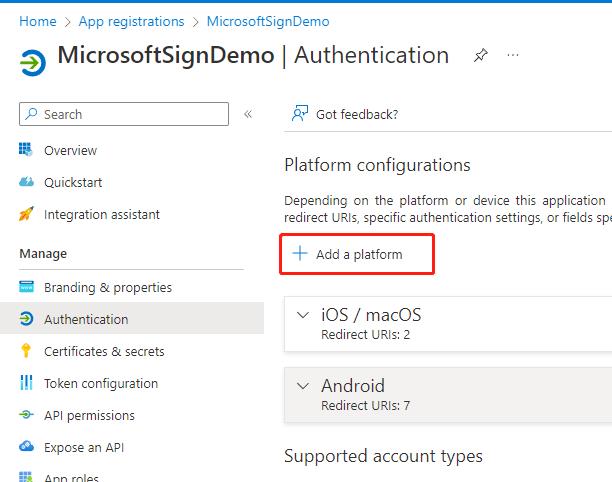

1. Click Add Platform

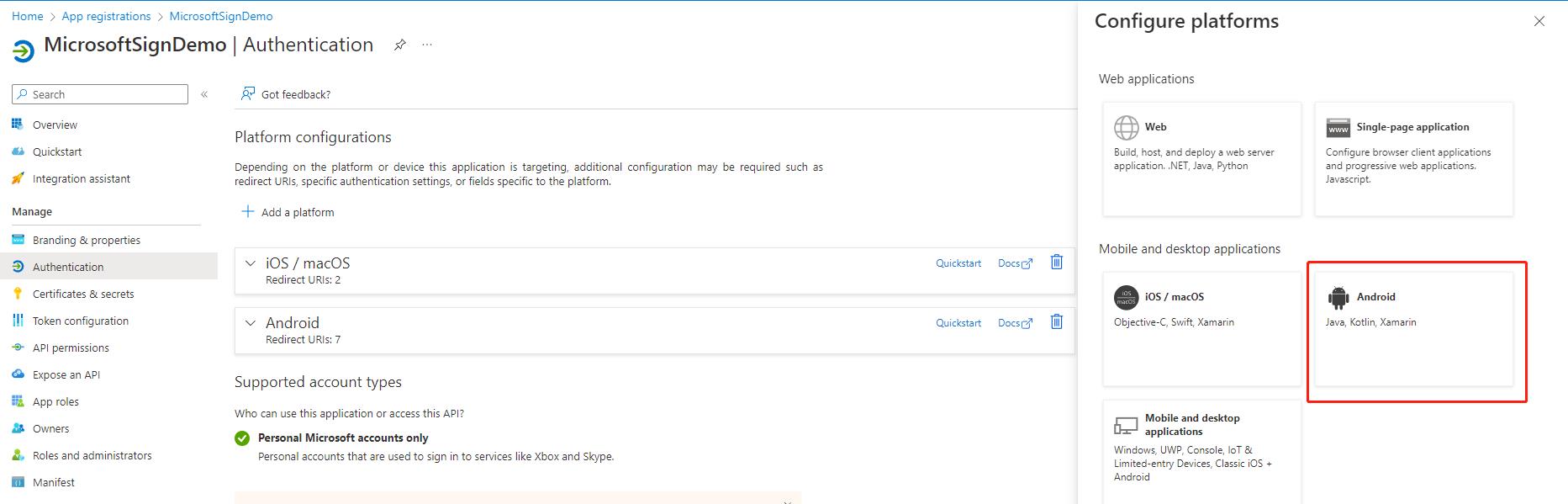

1. Select Android

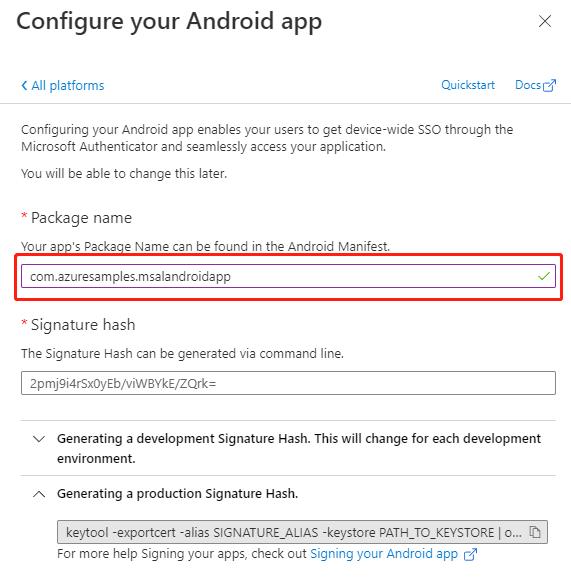

1. Enter the package name. Your app’s package name can be found in the Android Manifest for your app.

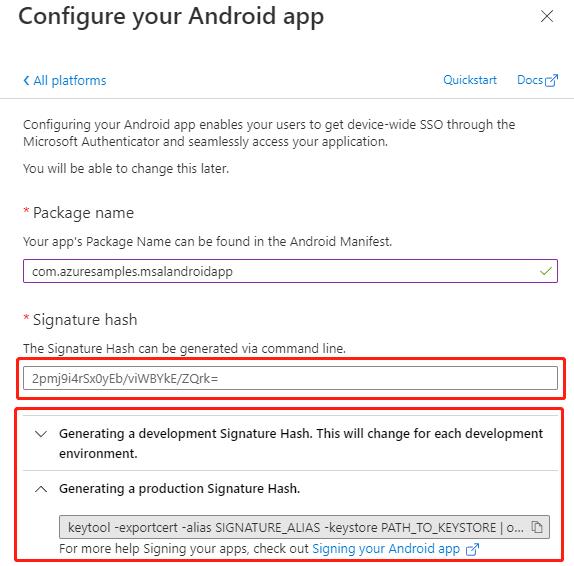

1. Using the command line indicated under the Signature hash section, generate a signature hash

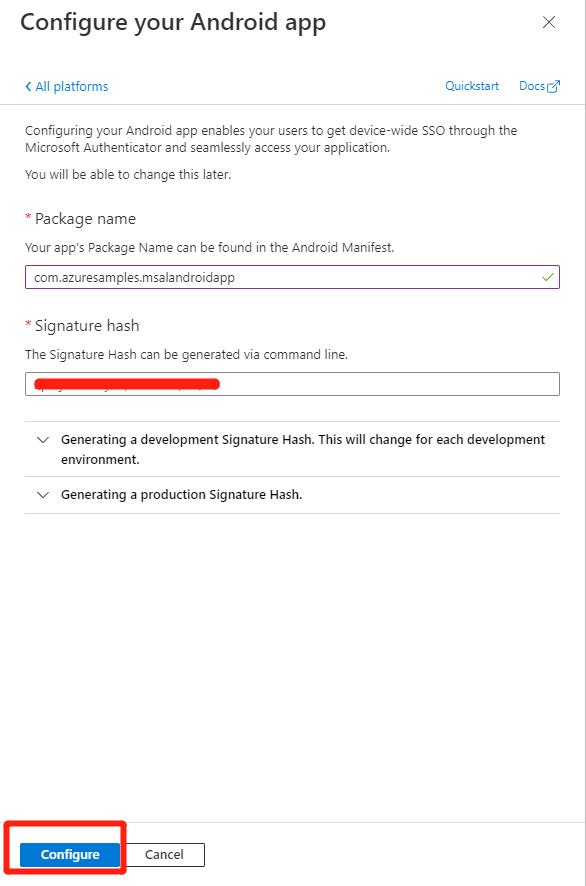

1. Click Configure

Declaring a dependency on Quick Authentication

1. Add the following to your app’s build.gradle

dependencies { ... implementation "com.microsoft:quickauth:0.4.0"}

1. Add the following to the repositories section in your build.gradle

mavenCentral()maven { url 'https://pkgs.dev.azure.com/MicrosoftDeviceSDK/DuoSDK-Public/_packaging/Duo-SDK-Feed/maven/v1'}

Creating a configuration file

The configuration file is necessary to initialize the Quick Authentication SDK and underlying MSAL library. Details on this file can be found here: MSAL Configuration.

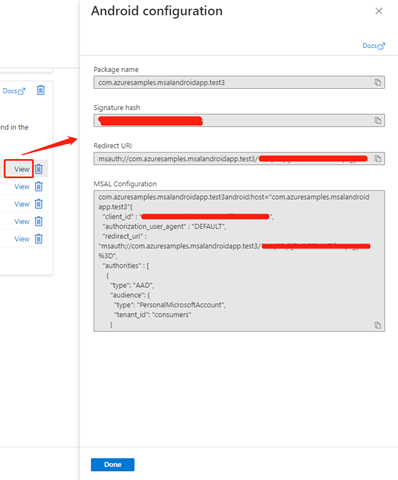

In the Authentication page, click the View button for your redirect URL to open this page:

Copy the MSAL Configuration JSON script and below redirect_uri please add the following line:

 "account_mode" : "SINGLE",

Your configuration JSON script should resemble this example:

{ "client_id": "<YOUR_CLIENT_ID>", "authorization_user_agent": "DEFAULT", "redirect_uri": "msauth://<YOUR_PACKAGE_NAME>/<YOUR_BASE64_URL_ENCODED_PACKAGE_SIGNATURE>", "account_mode": "SINGLE", "broker_redirect_uri_registered": true, "authorities": [ { "type": "AAD", "audience": { "type": "PersonalMicrosoftAccount", "tenant_id": "consumers" } } ]}

Then, save this JSON script as a “raw” resource file in your project resources. You will be able to refer to it using the generated resource identifier. You will need it to initialize MSQASignInClient.

Configuring an intent filter

Next, configure an intent filter in the Android Manifest for your application, using the same redirect URI you used for the Configuration JSON script above:

<activity android:name="com.microsoft.identity.client.BrowserTabActivity"> <intent-filter> <action android:name="android.intent.action.VIEW" /> <category android:name="android.intent.category.DEFAULT" /> <category android:name="android.intent.category.BROWSABLE" /> <data android:host="<YOUR_PACKAGE_NAME>" android:path="/<YOUR_BASE64_ENCODED_PACKAGE_SIGNATURE>" android:scheme="msauth" /> </intent-filter></activity>

Creating MSQASignInClient

MSQASignInClient is the main object in the Quick Authentication SDK. It gives you access to all functionality. To create it, you must first create a instance of MSQASignInOptions, which holds specific options you want to use to create MSQASignInClient. The example below creates an instance of MSQASignInOptions holding the JSON configuration file you created above. Put this code in your sign-in activity’s onCreate method.

Java:

MSQASignInOptions signInOptions = new MSQASignInOptions.Builder() .setConfigResourceId(R.raw.auth_config_single_account) .build();

Kotlin:

var signInOptions : MSQASignInOptions = MSQASignInOptions.Builder() .setConfigResourceId(R.raw.auth_config_single_account) .build()

Other options can be used, for example to configure logging. Refer to the reference documentation for additional options.

Then to create MSQASignClient, use its static create method:

public static void create(@NonNull Context context, @NonNull MQASignInOptions options, @NonNull ClientCreatedListener listener);

| Parameters | Description|—|—|| @NonNull context | Application’s Context. The sdk requires the application context to be passed in PublicClientApplication. Cannot be null.| @NonNull signInOptions | The option object you created above.| @NonNull listener | ClientCreatedListener is a callback to be invoked when the client object is successfully created. Cannot be null.| Returned value | none

Note that if the “raw” resource file does not exist, listener’s onError will get called.If the creation completes successfully, listener.onCreated will get called and return the newly created instance of MSQASignInClient.

Here is an example of calling the create method:

Java:

MSQASignInClient.create(context, signInOptions, new ClientCreatedListener() { @Override public void onCreated(@NonNull MSQASignInClient client) { // use client } @Override public void onError(@NonNull MSQAException error) { // handle error }});

Kotlin:

MSQASignInClient.create(context, signInOptions, object : ClientCreatedListener { override fun onCreated(client: MSQASignInClient) { // use client } override fun onError(error: MSQAException) { // handle error }})

Using a Sign-in Button

The easiest way to implement the sign-in flow with Quick Authentication is to use a pre-build Sign-in Button. Simply insert the following in your application’s layout xml in the desired place:

<com.microsoft.quick.auth.signin.view.MSQASignInButton android:id="@+id/ms_sign_button" />

This will create a fully functional button looking like this:

The look and feel of this button can be modified in a variety of ways by either specifying attributes in the xml above or programmatically. Look at the reference documentation for a more detailed description.

To programmatically set specific attributes on the button or to set the callback to be called when sign-in completes (see next section), you will need to retrieve the MSQASignInButton view object. The easiest is to assign an id to your button in the layout xml and find its view by id as follows:

Java:

MSQASignInButton signInButton = findViewById(R.id.ms_sign_button);

Kotlin:

var signInButton: MSQASignInButton = findViewById(R.id.ms_sign_button)

Handling the authentication events

As described above, the Sign-in Button is functional and clicking it will run the sign-in user experience. However, in your application you need a way to know that sign-in completed successfully and to retrieve properties of the account, such as username, email address, full name, given name, surname, unique id, idtoken and photo. The following method of MSQASignInButton allows to set that callback:

public void setSignInCallback ( @NonNull Activity activity, @NonNull MSQASignInClient client, @NonNull OnCompleteListener <MSQAAccountInfo> onCompleteListener);

| Parameters | Description ||–|–|| @NonNull activity | Activity that is used as the parent activity for launching sign page.| @NoNull client | A sign-in client object, provides sign-in, sign-out etc.| @NoNull listener | A callback to be invoked when sign-in completed, canceled or failed.| Returns | none

If sign-in succeeds, listener will be invoked, and first parameter will return the account info and the error parameter will be null. If it fails, accountInfo will be null and error will contain the error.

Code example:

Java:

signInButton.setSignInCallback(activity, client, new OnCompleteListener<MSQAAccountInfo>() { @Override public void onComplete(@Nullable MSQAAccountInfo accountInfo, @Nullable MSQAException error) { if (accountInfo != null) { // successful sign-in: use account } else { // unsuccessful sign-in: handle error } } });

Kotlin:

signInButton.setSignInCallback(activity, client) { accountInfo: MSQAAccountInfo?, error: MSQAException? -> if (accountInfo != null) { // successful sign-in: use account } else { // unsuccessful sign-in: handle error }}

The returned MSQAAccountInfo interface, returned by the listener, provides the following methods for getting at the returned user account information:

Signing out

You can request to sign the user out using the following method of MSQASignInClient

void signOut(@NonNull OnCompleteListener<Boolean> listener);

If sign-out succeeds, listener will be invoked and the first parameter will return true, the second parameter will return null. If it fails, the first parameter will be false and error will contain the error.

Code example:

Java:

signInClient.signOut(new OnCompleteListener<Boolean>() { @Override public void onComplete(@Nullable Boolean signOutSuccess, @Nullable MSQAException error) { if (signOutSuccess) { // sign out success } else { // handle error } }});

Kotlin:

signInClient.signOut { signOutSuccess: Boolean?, error: MSQAException? -> if (signOutSuccess) { // sign out success } else { // handle error }}

Logging

To facilitate debugging you have the following options to configure logging using “setter” methods of MSQASignInOptions.Builder that can be chained in the manner showed in the example below when creating an instance of MSQASignInOptions:

Java:

MSQASignInOptions signInOptions = new MSQASignInOptions.Builder() .setConfigResourceId(R.raw.auth_config_single_account) .setEnableLogcatLog(true) .setLogLevel(LogLevel.VERBOSE) .setExternalLogger((logLevel, message) -> { // handle log message here }) .build();

Kotlin:

var signInOptions : MSQASignInOptions = MSQASignInOptions.Builder() .setConfigResourceId(R.raw.auth_config_single_account) .setEnableLogcatLog(true) .setLogLevel(LogLevel.VERBOSE) .setExternalLogger { logLevel: Int, message: String? -> // handle log message here } .build()

Troubleshoot specific errors

Application showing up as “unverified”.

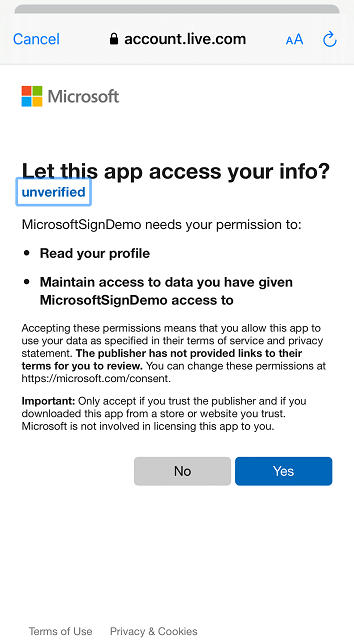

If your application shows up as “unverified” as in the image below, please look at this document on steps of how to resolve it, you can also reference Publisher verification.

Next steps

For more details about button configuration and API reference, see Microsoft Quick Authentication for Android configuration and Java API reference.
